Zapco ADSP-Z12 IV-10A
SKU ADSP-Z12-IV-10A
Original price
₹1,99,990.00
Sale price
₹1,39,990.00

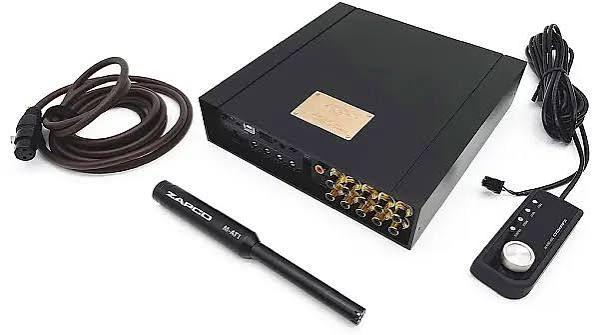

The Zapco ADSP-Z12 IV-10A is a 12-channel DSP with an integrated 10-channel Class D amplifier, from the ADSP-IV series.
- Cirrus Logic CS47048 DSP (150 MHz, 32-bit, 192 kHz) with 12 processing channels
- 10 x 80 W at 4 ohm, 10 x 120 W at 2 ohm or 5 x 240 W bridged at 4 ohm
- 8 RCA low-level and 8 speaker-level inputs, plus optical and coaxial digital inputs (24-bit, 192 kHz)
- Time alignment up to 15 ms in 0.02 ms steps; polarity 0/180°; mute and solo on each channel
- Dash remote included; HD Bluetooth streaming with the optional HD-BT II-D module
Genuine Zapco product.
Quantity
Technical Specs
| Brand | Zapco |
| Model | ADSP-Z12 IV-10A |
| Series | ADSP-IV |
| Type | 12-channel DSP with integrated 10-channel Class D amplifier |
| DSP processor | Cirrus Logic CS47048, 150 MHz, 32-bit, 192 kHz |
| ADC | 32-bit, 192 kHz; dynamic range 108 dB, THD -98 dB |
| DAC | 32-bit, 192 kHz; dynamic range 140 dB, THD -120 dB |
| Power at 4 ohm | 10 x 80 W |
| Power at 2 ohm | 10 x 120 W |
| Bridged power at 4 ohm | 5 x 240 W |
| Low-level inputs | 8 x RCA, 1 – 5 V RMS |
| High-level inputs | 8 channels, 2 – 20 V |
| Digital inputs | Optical 24-bit / 192 kHz; coaxial 24-bit / 192 kHz |
| Low-level outputs | 2 x RCA |
| Frequency response | 10 Hz – 22.5 kHz (-3 dB) |
| Signal-to-noise ratio | Input: 110 dBA (digital), 106 dBA (analogue); amplifier + DSP at maximum power: 95 dBA |
| THD + noise | Input: 0.002% (digital), 0.005% (analogue); amplifier + DSP (analogue input): 0.07% |
| Crosstalk | 90 dB at 1 kHz (DSP only); 45 dB (amplifier + DSP) |
| Time alignment | 0 – 15 ms in 0.02 ms steps (up to 515 cm in 0.68 cm steps) |
| Polarity | 0/180° |
| Remote | Dash remote included |
| Bluetooth | HD Bluetooth streaming with optional HD-BT II-D module |
| PC connection | USB / 6-pin mini DIN |
| Dimensions | Processor 213 x 291 x 50 mm (W x L x H); dash remote 95 x 40 x 30 mm |
