AudioControl D-6.1200 6-Channel DSP Matrix Amplifier with AccuBASS
SKU AUDIOCONTROL-D-6-1200
Original price
₹2,04,990.00
Sale price
₹1,74,240.00

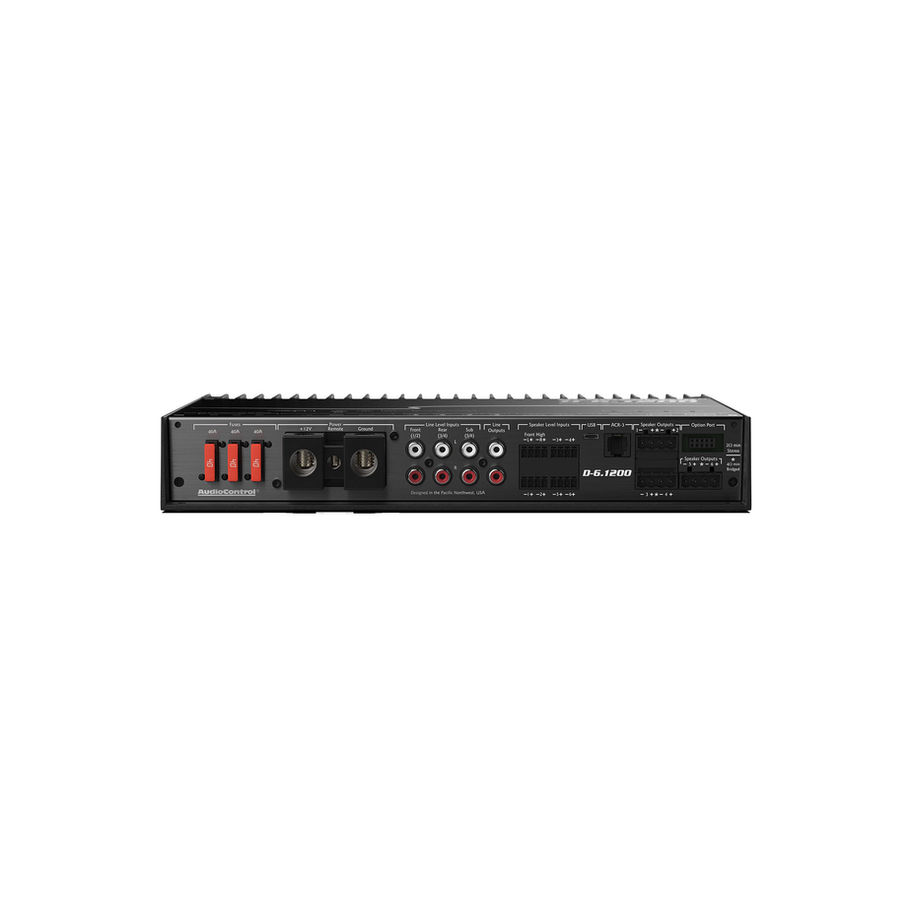

The AudioControl D-6.1200 combines a 6-channel amplifier and AudioControl's matrix DSP in one cast aluminium chassis. It delivers 6 x 125 W RMS at 4 ohm or 6 x 200 W RMS at 2 ohm and can be configured as a 6, 5, 4 or 3-channel amplifier for factory or aftermarket systems.
- 8 active speaker-level inputs for OEM integration, plus 6 balanced preamp inputs and 2 assignable preamp outputs
- Tuned with AudioControl's free DM Smart DSP app (Mac and PC; iOS and Android with the optional AC-BT24): 30-band equaliser, input and output delay, polarity and 12 or 24 dB/octave Linkwitz-Riley crossovers
- Input and output RTAs to identify and sum factory speaker signals
- AccuBASS processing, GTO signal sensing and MILC maximum input level control
- Option Port for future hi-res streaming; works with the optional ACR-3 remote and AC-BT24 Bluetooth streamer/programmer
Genuine AudioControl product.
Quantity
Technical Specs
| Brand | AudioControl |
| Model | D-6.1200 |
| Type | 6-channel DSP matrix amplifier (6, 5, 4 or 3-channel) |
| RMS power at 14.4 V, 4 ohm | 6 x 125 W |
| RMS power at 14.4 V, 2 ohm | 6 x 200 W |
| Bridged power, 4 ohm | 400 W RMS |
| Preamp inputs | 6 balanced, 250 mV – 8 V RMS |
| Speaker-level inputs | 8, 3 – 40 V RMS |
| Preamp outputs | 2, up to 8.5 V RMS |
| Frequency response | 20 Hz – 24 kHz |
| Signal-to-noise ratio | 102 dBA (ref. 200 W at 2 ohm) |
| THD+N | Less than 0.1% |
| Equaliser | 30-band |
| Crossovers | 12 and 24 dB/octave Linkwitz-Riley |
| Power / ground wire | 8 to 3 AWG |
| Fuses | 3 x 40 A |
| Dimensions (W x D x H) | 12.0 x 8.0 x 2.1 in |
| Weight | 3.2 kg (7.1 lb) |
| In the box | D-6.1200, speaker connectors, fuses, manual, warranty card |
