AudioControl DM-RTA Pro Kit Real-Time Analyser with Mic and Hard Case
SKU AUDIOCONTROL-DM-RTA-PRO-KIT
Original price
₹2,09,990.00
Sale price
₹1,78,490.00

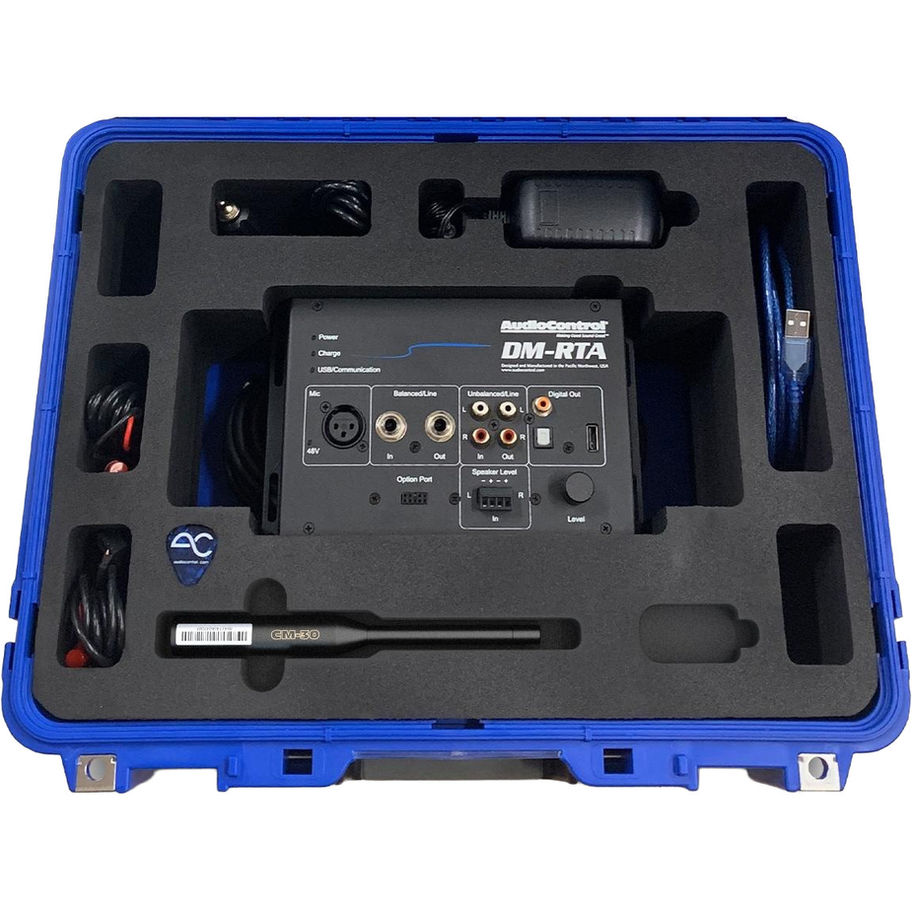

The AudioControl DM-RTA Pro Kit is a complete mobile audio measurement solution: the DM-RTA real-time analyser with a CM-30 measurement microphone, power supply, interconnects and custom test leads for line-level and speaker-level measurements, all in a blue hard case with laser-cut foam.
- Real-time analyser (RTA) for electrical and acoustic measurements, showing how much equalisation a vehicle needs
- SPL measurement to show how loud a system plays, before and after an upgrade
- Speaker polarity testing to make sure every speaker is in phase
- Oscilloscope for checking signals for clipping and amplitude when setting gains
- Signal generator output up to 5 V RMS; balanced, unbalanced, coaxial, optical and USB outputs; about 5 hours of battery life
Genuine AudioControl product.
Quantity
Technical Specs
| Brand | AudioControl |
| Model | DM-RTA PRO KIT |
| Type | Real-time analyser and audio measurement kit |
| Inputs | 1 x balanced (3.24 kohm), 1 x unbalanced (3.24 kohm), 1 x microphone (10 kohm), 1 x speaker-level (16.24 kohm) |
| Maximum low-level input | 8 V RMS |
| Maximum high-level input | 40 V RMS |
| Outputs | 1 x balanced and 1 x unbalanced (51 ohm), 1 x coaxial digital (75 ohm), 1 x optical (Toslink), 1 x USB |
| Signal generator maximum output | 5 V RMS / 7 V peak |
| Battery life | About 5 hours |
| Analyser dimensions (W x D x H) | 8 x 4.8 x 2.4 in |
| Analyser weight | 1.2 kg (2.6 lb) |
| Hard case | 16.5 x 16 x 7 in; 5.9 kg (13.0 lb) with contents |
| Software | DM-RTA app for PC and Mac |
| Kit contents | DM-RTA real-time analyser, 110 V AC power supply/charger, USB A-to-B and A-to-A cables, CM-30 measurement microphone, XLR microphone cable, speaker-input and RCA-input spring-loaded test lead cables, AudioControl tuning pick, blue hard case with laser-cut foam, manual, warranty card |
