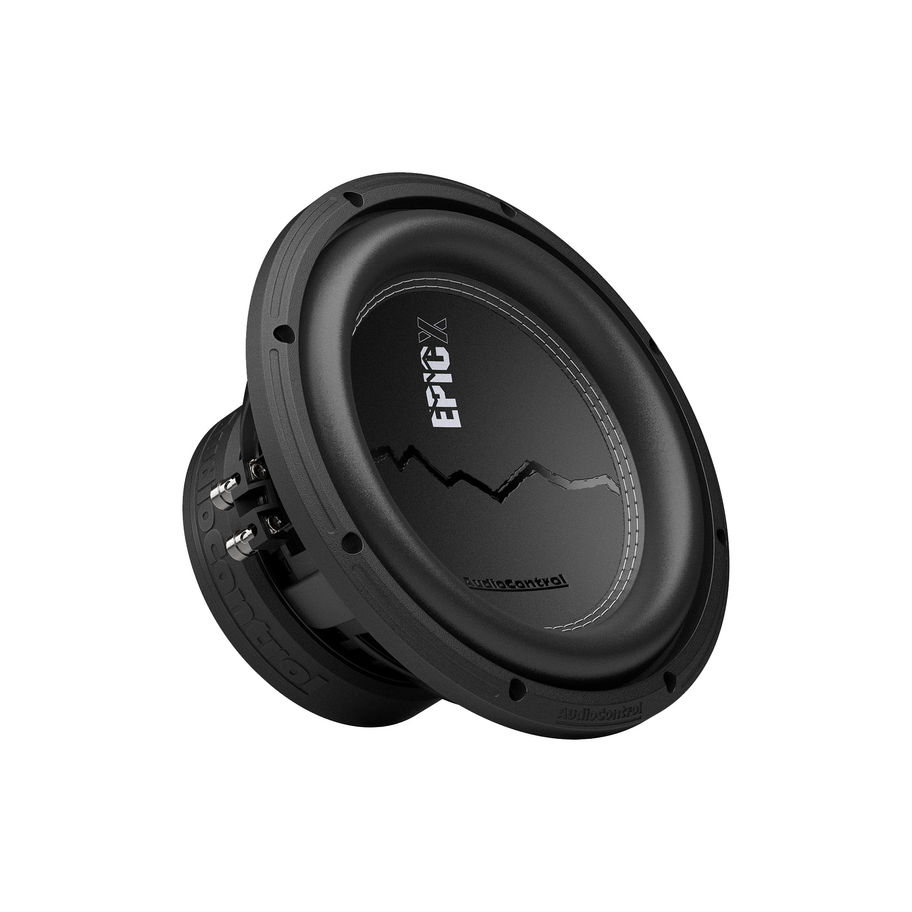

AudioControl EPICX10D4 10-Inch Dual 4 Ohm Subwoofer 500W RMS
SKU AUDIOCONTROL-EPICX10D4
Original price
₹24,990.00
Sale price
₹21,240.00
The AudioControl EPICX10D4 is a 10-inch (250 mm) EPICX Series subwoofer with dual 4-ohm voice coils, rated at 500 W RMS and 750 W max. A non-pressed paper cone, heavy-duty motor and rigid steel basket give tight, accurate bass that stays clean at high volume.
- Composite foam surround and one-piece dust cap for smooth, controlled and accurate bass
- High-precision motor assembly with a high-temperature, lightweight voice coil
- Rigid steel basket that resists resonance for tighter bass
- Large-gauge, quick-release black nickel terminals
- Designed to pair with AudioControl's The Epicenter bass restoration processor
Genuine AudioControl product.
Quantity
Technical Specs
| Brand | AudioControl |
| Model | EPICX10D4 |
| Type | 10 in dual voice coil subwoofer driver |
| Size | 10 in (250 mm) |
| Voice coils | Dual 4 ohm, 2.38 in |
| Power handling | 500 W RMS / 750 W max |
| Resonance frequency (Fs) | 39.8 Hz |
| Efficiency | 84.8 dB |
| Cone | Non-pressed paper |
| Magnet | 156 x 75 x 25 mm (6.14 x 2.95 x 0.98 in) |
| Overall diameter | 269 mm (10.5 in) |
| Cut-out diameter | 235 mm (9.25 in) |
| Mounting depth | 135.8 mm (5.3 in) |
| Mounting height | 24 mm (1 in) |
| Motor diameter (with cover) | 162 mm (6.4 in) |
| Sealed enclosure | 0.625 cu ft internal; 14 x 12.75 x 11 in external (W x H x D) |
| Ported enclosure | 1.25 cu ft net, tuned to 35 Hz; 20.5 x 13.5 x 11.5 in external; port 1.25 x 12 in, 23 in long |
| In the box | EPICX10D4 subwoofer, user guide |
