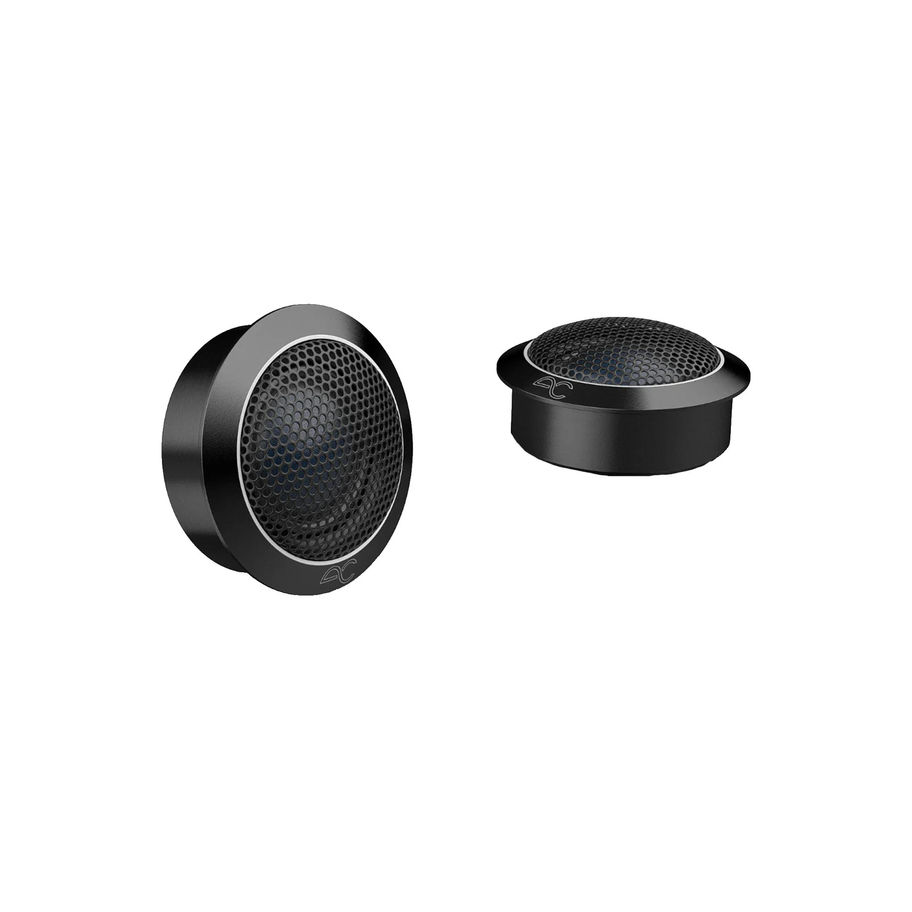

AudioControl PNW-1 1-Inch Tweeters 100W RMS 3 Ohm (Pair)
SKU AUDIOCONTROL-PNW-1
Original price
₹19,990.00
Sale price
₹16,990.00
The AudioControl PNW-1 is a pair of 1-inch high-fidelity tweeters with silk dome diaphragms, precision-machined aluminium housings and neodymium magnets, rated at 100 W RMS (125 W max) and 3 ohm. In-line high-pass filters are included, and they pair with any speaker in AudioControl's PNW line-up.
- Rear-dampened hybrid silk dome tweeter for extended frequency response
- Precision-machined aluminium housing with an embedded sonic damping pad
- Neodymium magnet for efficiency and a compact design
- Detachable assembly for OE applications, with multiple mounting accessories
- Included in-line 1st-order Butterworth high-pass filters (3.5 kHz)
Genuine AudioControl product.
Quantity
Technical Specs
| Brand | AudioControl |
| Model | PNW-1 |
| Type | 1 in tweeters (pair) |
| Power handling | 100 W RMS / 125 W max |
| Nominal impedance | 3 ohm |
| DC resistance (Re) | 2.3 ohm |
| Resonance frequency (Fs) | 1.621 kHz |
| Qms / Qes / Qts | 6.92 / 2.3091 / 1.7314 |
| Frequency response | 1 kHz – 20 kHz |
| Voice coil | 25 mm |
| In-line crossover | 1st-order Butterworth high-pass, 3.5 kHz, 6 dB/octave |
| Overall diameter (with grille) | 54 mm (2.13 in) |
| Cut-out diameter | 47 mm (1.85 in) |
| Mounting depth | 16 mm (0.63 in) |
| In the box | 2 x PNW-1 tweeters, manual, warranty card |
