Audison APK 690 Prima 6x9 Inch 2-Way Component System 300W
SKU APK-690
Price
₹29,990.00

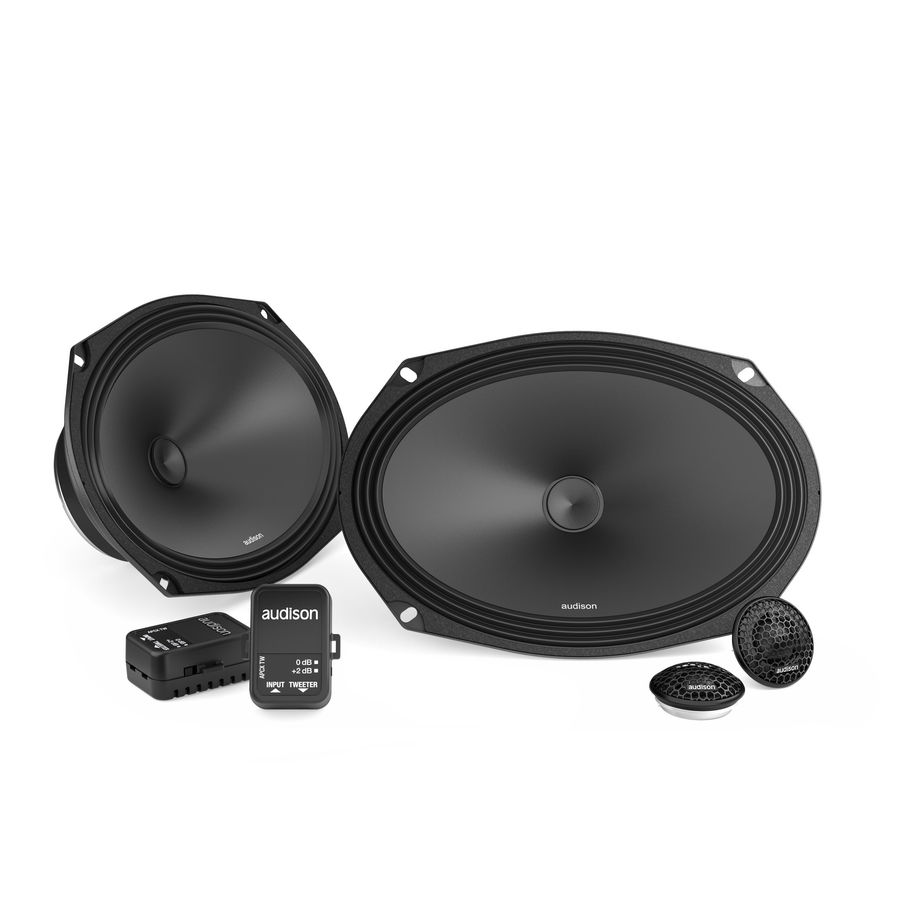

The Audison APK 690 is a two-way component system from the Prima range for cars whose doors take elliptical speakers, made up of AP 690 6 x 9 in. woofers, AP 1 tweeters and dedicated APCX TW 690 crossovers.
- Ultra-compact APCX TW 690 crossovers with a tweeter level switch (0 / +3 dB) and fast-on connectors
- The woofer cone and dust cap give a mechanical cut-off, so the woofer can be used without a filter for maximum efficiency
- AP 690 woofer: 25 mm pure copper voice coil, water-repellent treated paper cone (FEM profile), Triple Wave surround, reduced mounting depth and compact basket
- AP 1 tweeter: 26 mm diaphragm with a wide-roll surround and an acoustic lens for the 10-13 kHz band
- Double fast-on connectors with a direct link to the tweeter
Genuine Audison product.
Quantity
Technical Specs
| Brand | Audison |
| Model | APK 690 |
| Series | Prima |
| Type | 2-way component system |
| Woofer | 6 x 9 in (AP 690) |
| Tweeter | 26 mm (1 in) (AP 1) |
| Impedance | 4 ohm |
| Power handling | 100 W continuous / 300 W peak |
| Frequency response | 40 Hz – 20 kHz |
| SPL | Woofer 95 dB / tweeter 93 dB |
| Crossover | APCX TW 690, tweeter high-pass 3.3 kHz @ 6 dB/oct |
| Tweeter level | 0 / +3 dB |
| Voice coil | 25 mm woofer / 20 mm tweeter |
| Woofer magnet size | 90 x 32 x 15 mm |
| Woofer Fs / Qts | 55 Hz / 0.6 |
| Weight | Woofer 1.17 kg / tweeter 0.04 kg |
| MRP (India) | ₹ 29,990 |
What's in the Box & Compatibility
- 6x9 woofers, tweeters and crossovers (pair)
About Audison & VA3 Car Studio
Audison is the audiophile car audio brand of Elettromedia S.p.A. — designing high-end amplifiers, DSP processors and speaker systems in Potenza Picena, Italy since 1987. From the bit range that started the in-car DSP revolution to the Forza, Voce, SR and Prima lines, every Audison product is engineered with FEM simulation and rigorous listening tests. VA3 Car Studio supplies genuine Audison products in India, with expert system design, tuning and professional installation support.
