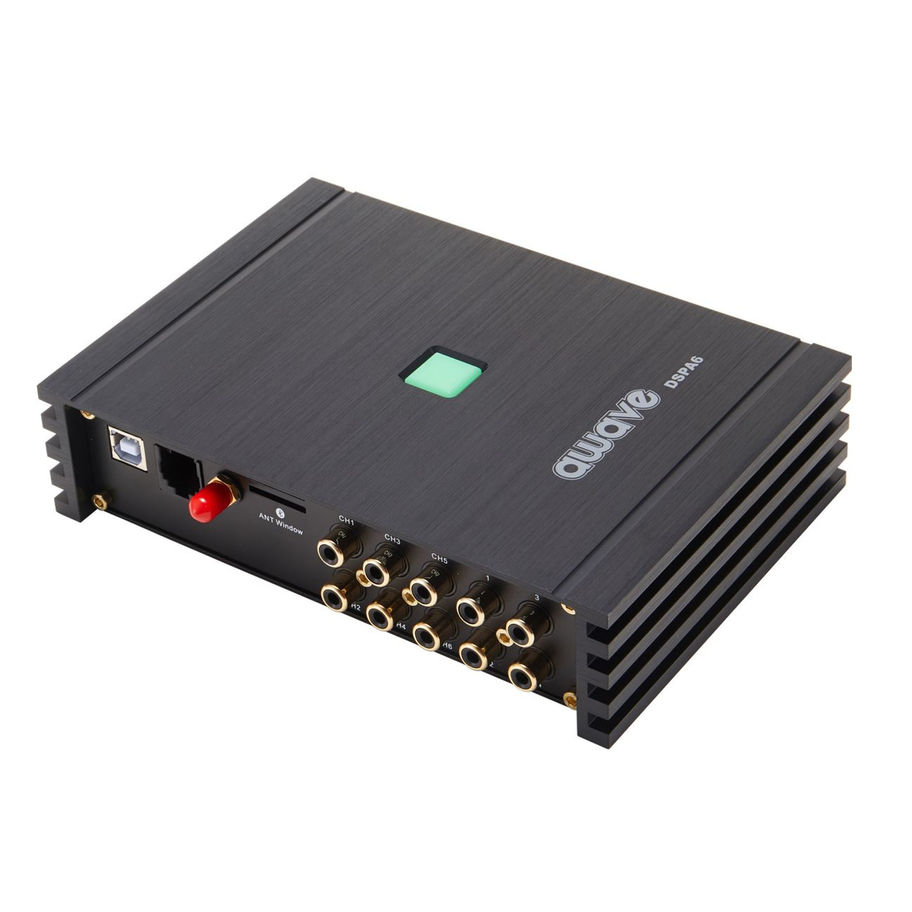

Awave DSP A6 6-Channel DSP Amplifier with Bluetooth
SKU AWAVE-DSP-A6
Original price
₹39,990.00
Sale price
₹31,990.00
The Awave DSP A6 is a 6-channel DSP amplifier with Bluetooth built in and four amplified outputs of 50 W, set up from a PC over USB.
- 6-channel DSP amplifier with built-in Bluetooth
- 4 x 50 W amplified outputs
- Full-range, high-pass, low-pass and band-pass crossovers with slopes from 6 to 48 dB/oct and phase control from 0 to 180°
- High-level (speaker) inputs accept 3 – 15 V signals from a factory head unit
- Signal-to-noise ratio 98 dB and 0.01% THD; works from 8.5 to 15 V DC
Technical specifications: THD: 0.01% (1 kHz, 1 V RMS output); Crossover: Full-range, high-pass, low-pass and band-pass; slopes 6/12/18/24/30/42/48 dB/oct; 68 frequency steps from 20 Hz to 20 kHz; Phase control: 0 – 180°, set per channel; PC connection: USB-B; Operating voltage: 8.5 – 15 V DC; Idling current: 1.5 A.
Genuine Awave product.
Quantity
Technical Specs
| Brand | Awave |
| Model | DSP A6 |
| Type | 6-channel DSP amplifier |
| Amplified outputs | 4 x 50 W |
| Bluetooth | Built in |
| High-level input range | 3 – 15 V |
| Signal-to-noise ratio | 98 dB |
| THD | 0.01% (1 kHz, 1 V RMS output) |
| Crossover | Full-range, high-pass, low-pass and band-pass; slopes 6/12/18/24/30/42/48 dB/oct; 68 frequency steps from 20 Hz to 20 kHz |
| Phase control | 0 – 180°, set per channel |
| PC connection | USB-B |
| Operating voltage | 8.5 – 15 V DC |
| Idling current | 1.5 A |
