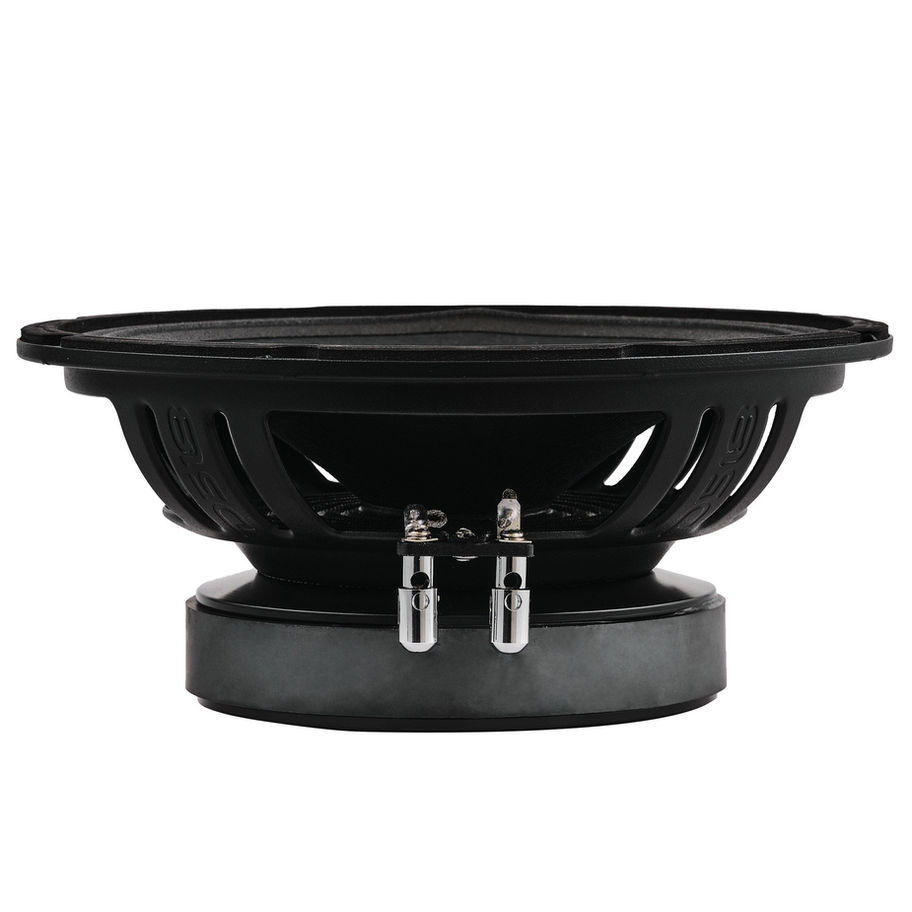

DS18 8PRO400MR-4 PRO 8-Inch High Sensitivity Mid-Range Speaker Piece

The DS18 8PRO400MR-4 is an 8-inch PRO series high-sensitivity mid-range loudspeaker with a 4-ohm voice coil. It is sold as a single piece.

• 200 W RMS and 400 W maximum power handling
• 104 dB sensitivity (1 W / 1 m)
• Frequency response 100 Hz – 12.5 kHz; recommended high-pass crossover 160 Hz
• Copper demodulating ring to reduce harmonic and intermodulation distortion
• 1.5 in (38.6 mm) voice coil, curvilinear paper cone, steel basket and 40 oz ferrite magnet

Technical specifications: Type: 8-inch high-sensitivity mid-range loudspeaker; Nominal diameter: 8 in (203 mm); Impedance: 4 ohm; Voice coil: 1.5 in (38.6 mm), CCAW winding; Cone: Paper, curvilinear; Surround: Cloth; Basket: Steel, black; Magnet: Ferrite, 40 oz; Speaker terminals: Push terminals, 8 gauge; Xmax (one way): 0.75 mm; Fs: 70 Hz; Qts: 0.32; Overall diameter: 8.19 in (208 mm); Cut-out diameter: 7.36 in (187 mm); Mounting depth: 3.48 in (88.5 mm); Overall depth: 3.72 in (94.6 mm); Grille: Not included.

Genuine DS18 product.
