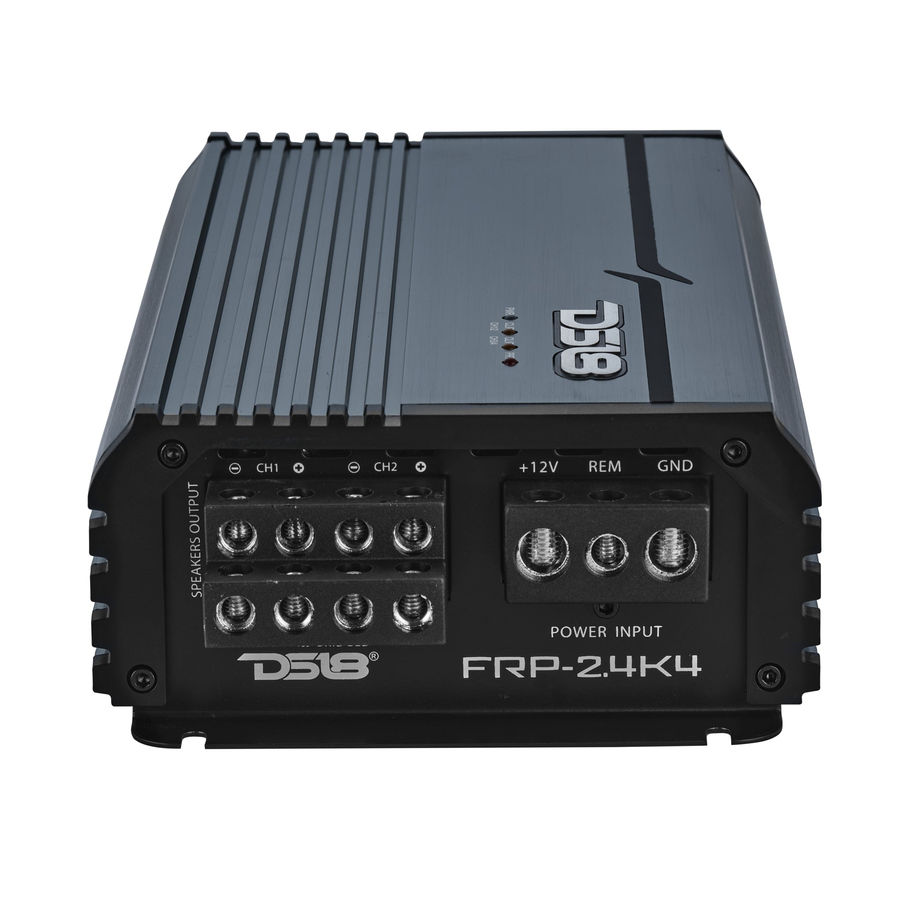

DS18 FRP-2.4K4/TI Titanium 4-Channel Full Range Class D Amplifier

The DS18 FRP-2.4K4/TI is a compact FRP series 4-channel full-range Class D amplifier in a titanium finish, rated at 2400 W RMS in total.

• 4 x 250 W RMS at 4 ohm, 4 x 400 W RMS at 2 ohm and 4 x 600 W RMS at 1 ohm
• Bridged: 2 x 750 W RMS at 4 ohm and 2 x 1000 W RMS at 2 ohm
• Selectable high-pass, low-pass or full-range crossover (10 Hz – 2 kHz) and 0 – 12 dB bass boost at 50 Hz
• 2/4-channel input selector, Tiffany RCA inputs, smart cooling fan and power, protect and clip LEDs

Technical specifications: Minimum impedance: 1 ohm stereo, 2 ohm bridged; Frequency response: 10 Hz – 20 kHz; Signal-to-noise ratio: 90 dB; THD: 0.5%; Channel separation: 50 dB; Damping factor: 90; Efficiency: 97% at 4 ohm; Input sensitivity: 400 mV – 6 V; Input impedance: 10 kohm; Crossover: High-pass / low-pass / full, 10 Hz – 2 kHz; Bass boost: 0 – 12 dB at 50 Hz; Power terminals: 0 gauge; Recommended fuse: 240 A; Protection: Thermal, overload, DC output, short circuit, input voltage; Dimensions (L x W x H): 10.3 x 5.5 x 2.4 in (262 x 140 x 63.5 mm); Gross weight: 2.3 kg.

Genuine DS18 product.
