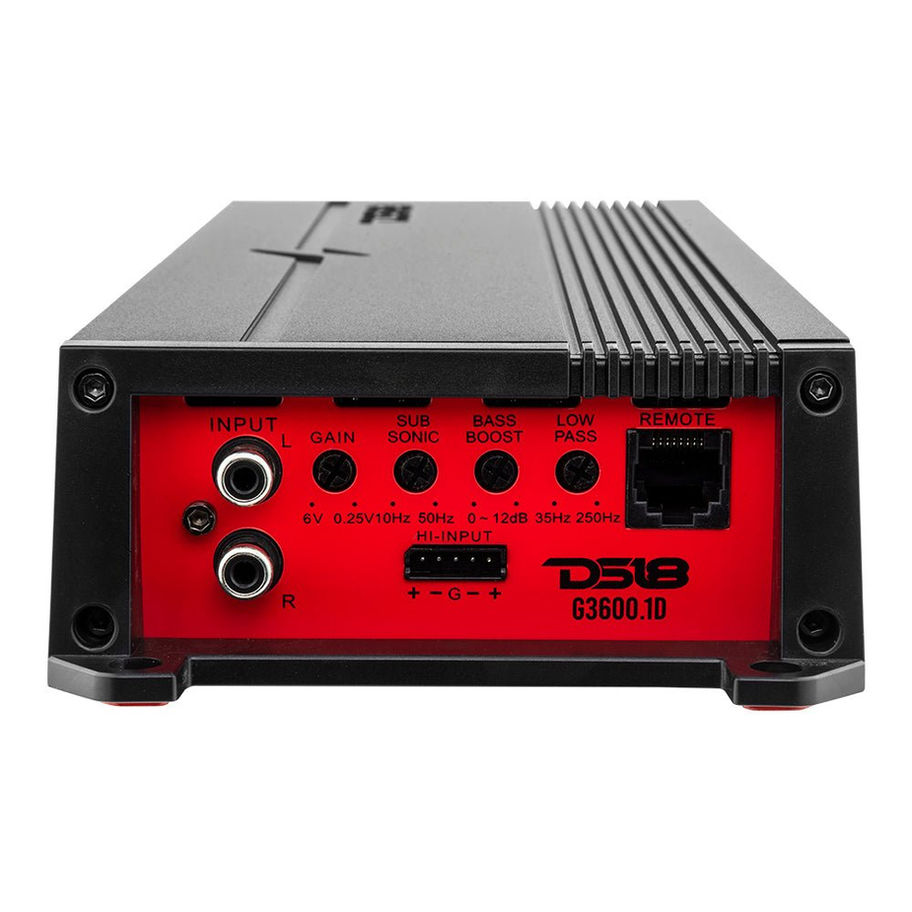

DS18 G3600.1D GEN-X 1-Channel Monoblock Class D Amplifier
SKU DS18-G3600.1D
Original price
₹39,990.00
Sale price
₹25,990.00
The DS18 G3600.1D is a Class D 1-channel monoblock subwoofer amplifier from DS18's GEN-X (G Series) range, rated at 1200 W RMS at 1 ohm (3600 W peak).
- 1200 W RMS at 1 ohm, 900 W RMS at 2 ohm and 500 W RMS at 4 ohm (14.4 V); 1 to 4 ohm stable
- Fixed low-pass filter (35 Hz – 250 Hz), subsonic filter (10 Hz – 50 Hz) and bass boost at 45 Hz
- High-level input; bass control knob included for remote subwoofer level adjustment
- Power, protection and clip LED indicators; thermal, short-circuit, DC output, input voltage and clipping protection
- 4 GA power input, 8 GA speaker output and 120 A fuse rating; matte black finish
Genuine DS18 product.
Quantity
Technical Specs
| Brand | DS18 |
| Model | G3600.1D |
| Series | GEN-X (G Series) |
| Type | Class D monoblock subwoofer amplifier, 1 channel |
| Peak power | 3600 W |
| RMS power at 1 ohm (14.4 V) | 1200 W |
| RMS power at 2 ohm (14.4 V) | 900 W |
| RMS power at 4 ohm (14.4 V) | 500 W |
| Minimum impedance | 1 ohm |
| Frequency response | 10 Hz – 500 Hz |
| Signal-to-noise ratio | More than 93 dB |
| Efficiency at 4 ohm | 90% |
| Damping factor | 45 |
| Input sensitivity | 0.25 V – 6 V |
| Input impedance | 22 kohm |
| High-level input | Yes |
| Low-pass filter | Fixed, 35 Hz – 250 Hz |
| Subsonic filter | 10 Hz – 50 Hz |
| Bass boost frequency | 45 Hz |
| Remote level control | Yes (bass knob) |
| Operating voltage | 9 V – 15 V |
| Terminals | 4 GA power input, 8 GA speaker output |
| Fuse rating | 120 A |
| Finish | Matte black |
| Dimensions (L x W x H) | 12 x 4.72 x 1.96 in (305 x 120 x 50 mm) |
