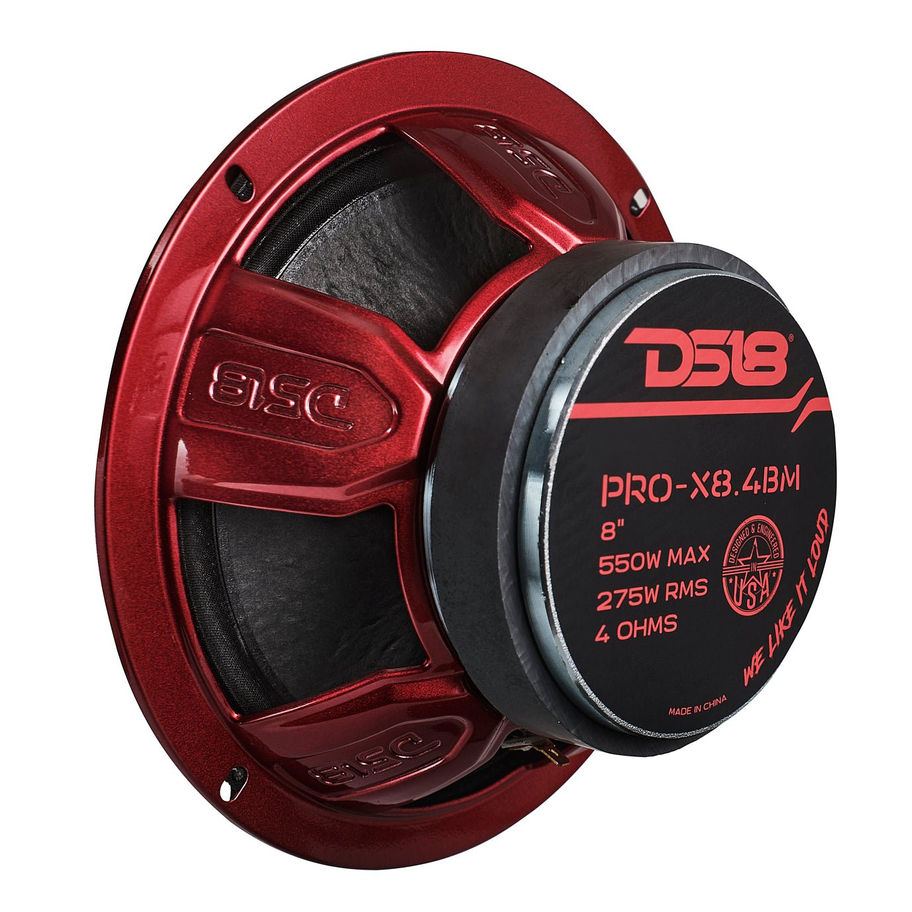

DS18 PRO-X8.4BM 8-Inch Pro Audio Mid-Range Bullet Loudspeaker Piece
SKU DS18-PRO-X8.4BM
Original price
₹8,990.00
Sale price
₹5,840.00
The DS18 PRO-X8.4BM is an 8-inch PRO-X series mid-range loudspeaker with a bullet dust cap. It is sold as a single piece.
- 275 W RMS and 550 W maximum power handling at 4 ohm
- 97 dB sensitivity (1 W / 1 m)
- Frequency response 115 Hz – 16 kHz; recommended high-pass crossover 120 Hz
- 1.5 in (38.6 mm) voice coil on a Kapton former with CCAW winding
- Steel basket and 30 oz ferrite magnet
Technical specifications: Type: 8-inch mid-range bullet loudspeaker; Nominal diameter: 8 in (203 mm); Voice coil: 1.5 in (38.6 mm), Kapton former, CCAW winding; Magnet: Ferrite, 30 oz; Xmax (one way): 9.3 mm; Fs: 127 Hz; Qts: 0.712; Overall diameter: 8.22 in (209 mm); Cut-out diameter: 7.17 in (182 mm); Mounting depth: 3.2 in (82 mm); Overall depth: 3.5 in (88.6 mm).
Genuine DS18 product.
Quantity
Technical Specs
| Brand | DS18 |
| Model | PRO-X8.4BM |
| Series | PRO-X |
| Type | 8-inch mid-range bullet loudspeaker |
| Nominal diameter | 8 in (203 mm) |
| Impedance | 4 ohm |
| RMS power | 275 W RMS |
| Maximum power | 550 W |
| Sensitivity (1 W / 1 m) | 97 dB |
| Frequency response | 115 Hz – 16 kHz |
| Recommended high-pass crossover | 120 Hz |
| Voice coil | 1.5 in (38.6 mm), Kapton former, CCAW winding |
| Basket | Steel |
| Magnet | Ferrite, 30 oz |
| Xmax (one way) | 9.3 mm |
| Fs | 127 Hz |
| Qts | 0.712 |
| Overall diameter | 8.22 in (209 mm) |
| Cut-out diameter | 7.17 in (182 mm) |
| Mounting depth | 3.2 in (82 mm) |
| Overall depth | 3.5 in (88.6 mm) |
| Sold as | Single piece |
