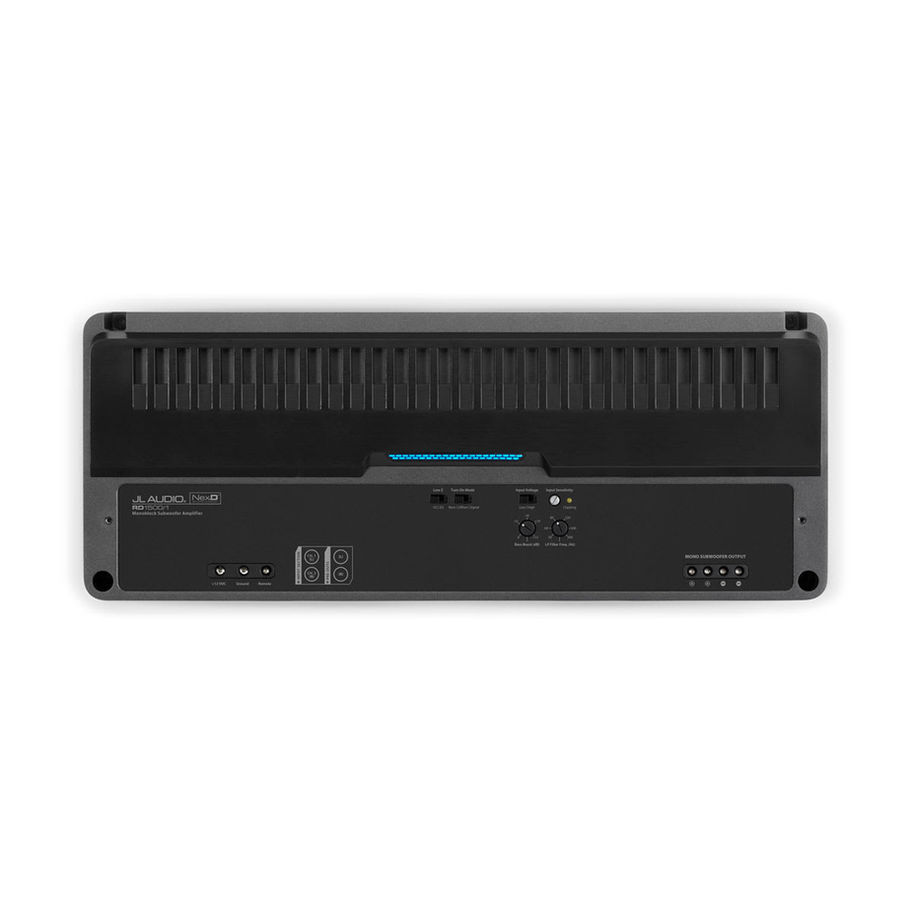

JL Audio RD1500/1 Monoblock Class D Subwoofer Amplifier
SKU JL-RD1500-1
Original price
₹1,29,990.00
Sale price
₹84,490.00
The JL Audio RD1500/1 is a Class D monoblock subwoofer amplifier from JL Audio's RD series, stable down to 1 ohm, using NexD switching technology for high power with excellent efficiency.
- 750 W at 4 ohm, or 1500 W at 2 ohm or 1 ohm (14.4 V)
- 12 dB/octave low-pass filter, 50–500 Hz
- Variable bass boost EQ: 0 to +12 dB at 45 Hz
- Differential-balanced inputs with buffered pass-through preamp outputs
- LED clipping indicator simplifies level setting
- Turn-on by remote wire, signal sensing or DC offset
- Optional RBC-1 remote bass control
Genuine JL Audio product.
Quantity
Technical Specs
| Brand | JL Audio |
| Model | RD1500/1 |
| Series | RD |
| Type | Class D monoblock subwoofer amplifier |
| RMS power @ 14.4 V | 750 W x 1 @ 4 ohm; 1500 W x 1 @ 2 ohm; 1500 W x 1 @ 1 ohm |
| Minimum impedance | 1 ohm |
| Frequency response | 7 Hz – 500 Hz |
| Input sensitivity | Switchable 200 mV – 2 V RMS (low) or 800 mV – 8 V RMS (high) |
| Low-pass filter | 12 dB/octave, 50–500 Hz |
| Bass EQ | 0 to +12 dB @ 45 Hz |
| Turn-on | Remote wire, signal sensing or DC offset |
| Remote level control | Optional RBC-1 |
| In the box | Amplifier, Allen wrench, JL Audio badge |
| Dimensions (W x D x H) | 18.05 x 6.96 x 2.13 in (458 x 177 x 54 mm) |
