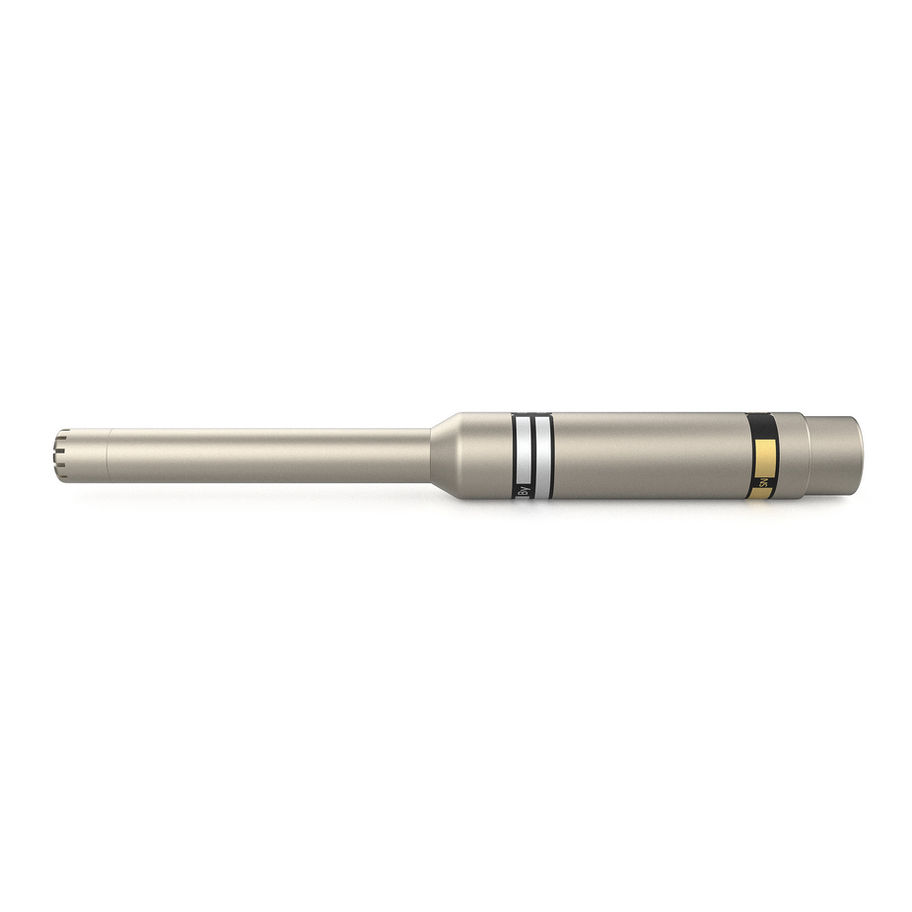

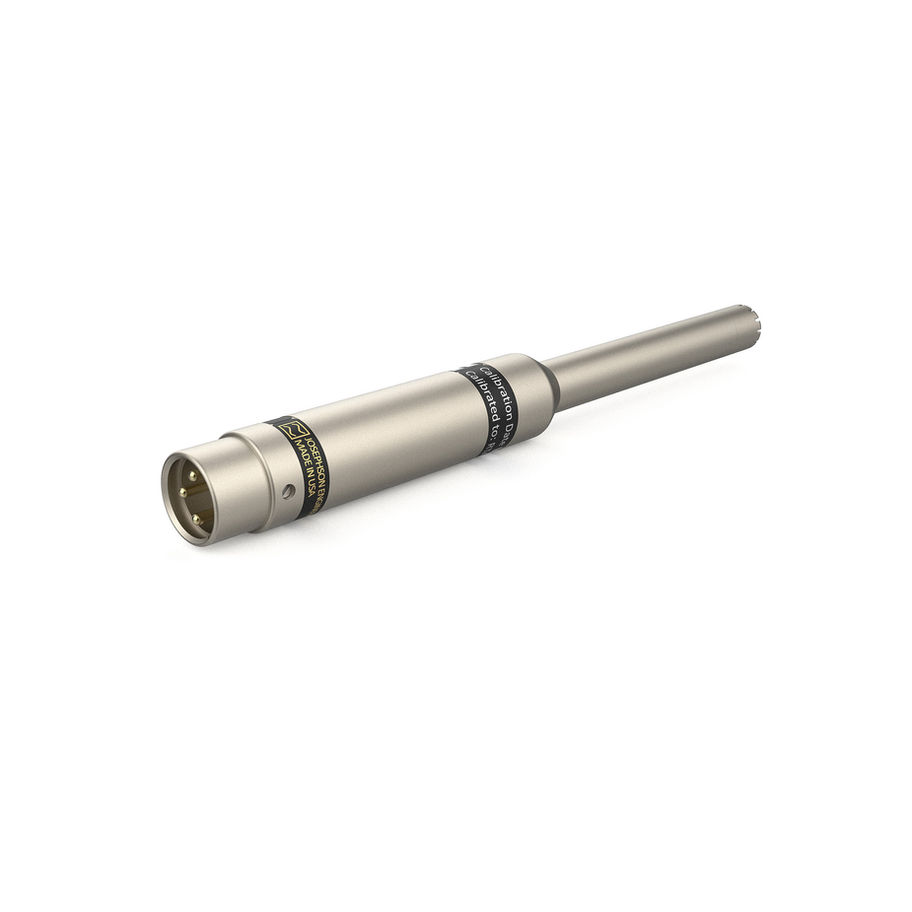

AudioControl C550H (CM-550H) Josephson Precision Measurement Microphone
SKU AUDIOCONTROL-C550H
Original price
₹1,09,990.00
Sale price
₹93,490.00
The C550H (listed as CM-550H) is the Josephson C550H precision omnidirectional measurement microphone supplied by AudioControl. Made in California by Josephson Engineering, each microphone is thermally conditioned for stability, individually calibrated and sensitivity-matched, and its nose fits standard 1/2-inch calibrators.
- Capacitive pressure transducer with a prepolarised backplate
- 20 Hz – 20 kHz (±2 dB) response and a 35 – 135 dB SPL dynamic range
- Thermally conditioned for stable measurements; individually calibrated and sensitivity-matched
- Phantom powered (15 – 50 V DC) through a 3-pin XLR connector
- Calibration preset built into the AudioControl DM-RTA
Genuine AudioControl product.
Quantity
Technical Specs
| Brand | AudioControl |
| Model | C550H |
| Type | Precision measurement microphone (capacitive pressure transducer, prepolarised backplate) |
| Maker | Josephson Engineering, made in California |
| Frequency response | 20 Hz – 20 kHz (±2 dB) |
| Dynamic range | 35 – 135 dB SPL |
| Polar pattern | Omnidirectional |
| Impedance | 50 ohm |
| Phantom power | 15 – 50 V DC |
| Connector | 3-pin XLR, pin 2 positive |
| Calibrator fit | Standard nominal 1/2-inch calibrators |
| In the box | C550H microphone, bag, shock mount |
