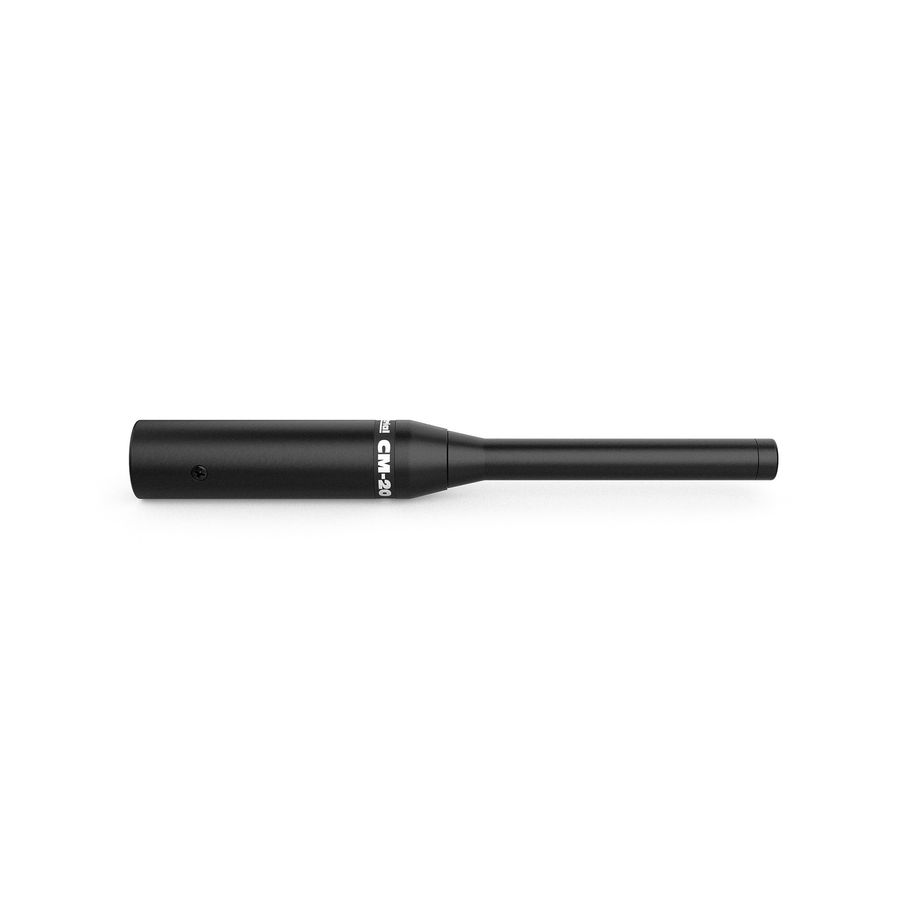

AudioControl CM-20 Everyday Measurement Microphone
SKU AUDIOCONTROL-CM-20
Original price
₹21,990.00
Sale price
₹18,690.00
The AudioControl CM-20 is an affordable, rugged measurement microphone with a 1/4-inch back-electret condenser capsule and an omnidirectional pickup. It runs on phantom power through a 3-pin XLR connector and suits everyday RTA and SPL measurements.
- 1/4-inch back-electret condenser capsule with omnidirectional pickup
- 20 Hz – 20 kHz (±3 dB) frequency response
- Phantom powered (10 – 52 V DC) through a 3-pin XLR connector
- Rugged build, and low enough in cost to keep a spare
- Calibration preset built into the AudioControl DM-RTA
Genuine AudioControl product.
Quantity
Technical Specs
| Brand | AudioControl |
| Model | CM-20 |
| Type | Measurement microphone (back-electret condenser) |
| Capsule | 1/4 in |
| Frequency response | 20 Hz – 20 kHz (±3 dB) |
| Polar pattern | Omnidirectional |
| Impedance | 250 ohm |
| Phantom power | 10 – 52 V DC |
| Connector | 3-pin XLR, pin 2 positive |
| Tip diameter | 10 mm (0.39 in) |
| In the box | CM-20 microphone |
